COLIERE TIP DUO UPGD
Protecție anti-coroziune: zinc galvanizat
Suruburi de conectare: cu cap hexagonal cu adâncitură cruce-caneluri + piuliţe care previn căderea şuruburilor
Insert de amortizare: material: elastomer EPDM; rezistenţă termică: între -40°C şi +120°C izola
Suruburi de conectare: cu cap hexagonal cu adâncitură cruce-caneluri + piuliţe care previn căderea şuruburilor
Insert de amortizare: material: elastomer EPDM; rezistenţă termică: între -40°C şi +120°C izola

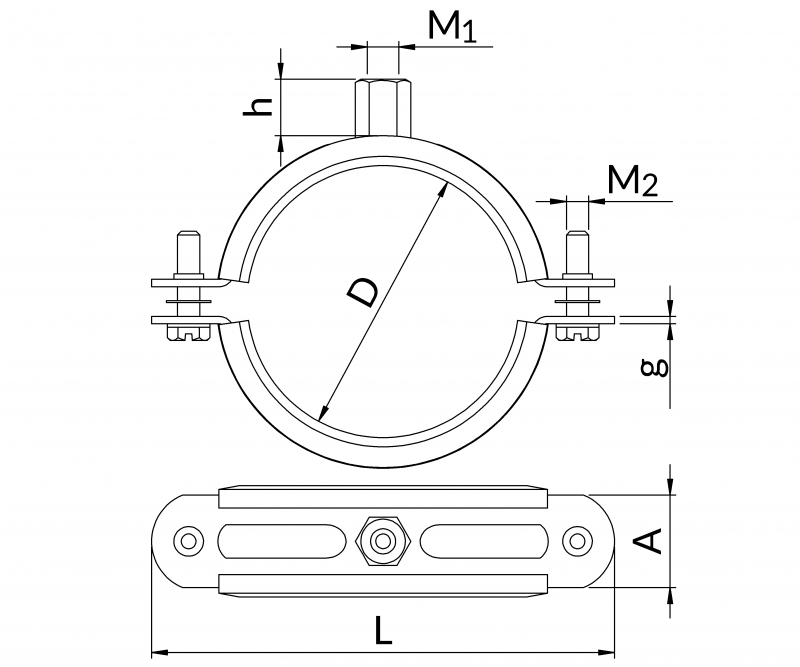

| Gama de diametre D [mm] | Marimea M 1 | Înălțimea conexiunii h [mm] | Versiune | Dimensiunile clemei L [mm]A xg [mm] | Șuruburi de conectare M 2 | Sarcina admisibila [kN] | Greutate [kg] | Cantitate [buc/pachet] | Marca pentru comandă | Număr de catalog |
|---|---|---|---|---|---|---|---|---|---|---|
| 10-12 | M8/M10 | 17,0 | D | 58-20x1,25 | M6 | 0,90 | 0,0502 | 100 | UPGD-12 | 80120201200 |
| 13-16 | M8/M10 | 17,0 | D | 62-20x1,25 | M6 | 0,90 | 0,0525 | 100 | UPGD-1/4" | 80120201300 |
| 17-20 | M8/M10 | 17,0 | D | 66-20x1,25 | M6 | 0,90 | 0,0534 | 100 | UPGD-3/8" | 80120201700 |
| 21-25 | M8/M10 | 17,0 | D | 70-20x1,25 | M6 | 0,90 | 0,0602 | 100 | UPGD-1/2" | 80120202100 |
| 26-30 | M8/M10 | 17,0 | D | 76-20x1,25 | M6 | 0,90 | 0,0655 | 100 | UPGD-3/4" | 80120202600 |
| 31-36 | M8/M10 | 17,0 | D | 83-20x1,25 | M6 | 0,90 | 0,0753 | 100 | UPGD-1" | 80120203300 |
| 36-41 | M8/M10 | 17,0 | D | 88-20x1,25 | M6 | 0,90 | 0,0778 | 50 | UPGD-40 | 80120204000 |
| 41-46 | M8/M10 | 17,0 | D | 93-20x1,25 | M6 | 0,90 | 0,0850 | 50 | UPGD-11/4" | 80120204200 |
| 47-52 | M8/M10 | 17,0 | D | 103-20x1,25 | M6 | 0,90 | 0,0887 | 50 | UPGD-11/2" | 80120204800 |
| 53-58 | M8/M10 | 17,0 | D | 105-20x1,25 | M6 | 0,90 | 0,0834 | 50 | UPGD-54 | 80120205400 |
| 59-64 | M8/M10 | 17,0 | D | 116-20x1.5 | M6 | 0,90 | 0,1039 | 50 | UPGD-2" | 80120206000 |
| 65-71 | M8/M10 | 17,0 | D | 118-20x1.5 | M6 | 1,40 | 0,1646 | 25 | UPGD-70 | 80120207000 |
| 72-78 | M8/M10 | 17,0 | D | 125-20x1,8 | M6 | 1,40 | 0,1760 | 25 | UPGD-21/2" | 80120207600 |
| 79-85 | M8/M10 | 17,0 | D | 132-20x1,8 | M6 | 1,40 | 0,1881 | 25 | UPGD-80 | 80120208000 |
| 86-92 | M8/M10 | 17,0 | D | 139-25x2,0 | M6 | 1,40 | 0,2019 | 25 | UPGD-3" | 80120208900 |
| 93-99 | M8/M10 | 17,0 | D | 146-25x2,0 | M6 | 1,40 | 0,2144 | 25 | UPGD-95 | 80120209500 |
| 100-107 | M8/M10 | 17,0 | D | 154-25x2,0 | M6 | 1,40 | 0,2232 | 25 | UPGD-105 | 80120210500 |
| 108-115 | M8/M10 | 17,0 | D | 162-25x2,0 | M6 | 1,80 | 0,2473 | 25 | UPGD-4" | 80120201000 |
| 116-124 | M8/M10 | 17,0 | D | 171-25x2,0 | M6 | 1,80 | 0,2592 | 25 | UPGD-120 | 80120212000 |
| 125-133 | M8/M10 | 17,0 | D | 180-25x2,0 | M6 | 1,80 | 0,2654 | 20 | UPGD-125 | 80120212500 |
| 133-141 | M8/M10 | 17,0 | D | 191-25x2,5 | M6 | 2,10 | 0,3255 | 20 | UPGD-5" | 80120213300 |
| 142-150 | M8/M10 | 17,0 | D | 200-25x2,5 | M6 | 2,10 | 0,3460 | 20 | UPGD-145 | 80120214500 |
| 151-160 | M8/M10 | 17,0 | D | 209-25x2,5 | M6 | 2,10 | 0,3570 | 20 | UPGD-160 | 81202015900 |
| 160-169 | M8/M10 | 17,0 | D | 218-25x2,5 | M6 | 2,10 | 0,3755 | 10 | UPGD-6" | 80120216000 |
| 200-210 | M8/M10 | 17,0 | D | 258-25x2,5 | M6 | 2,10 | 0,4541 | 10 | UPGD-200 | 80120220000 |
