Coliere tip DUO UPZD
Protecție anti-coroziune: oțel galvanizat
Fisa tehnica:
Declaratie: dedesubt 2" 01/2020 z dn. 16.04.2020
deasupra 2" 01/2017 z dn. 08.03.2017
Aprobare: dedesubt 2" ITB-KOT-2018/0744 wyd. 2
deasupra 2" AT-
Fisa tehnica:
Declaratie: dedesubt 2" 01/2020 z dn. 16.04.2020
deasupra 2" 01/2017 z dn. 08.03.2017
Aprobare: dedesubt 2" ITB-KOT-2018/0744 wyd. 2
deasupra 2" AT-

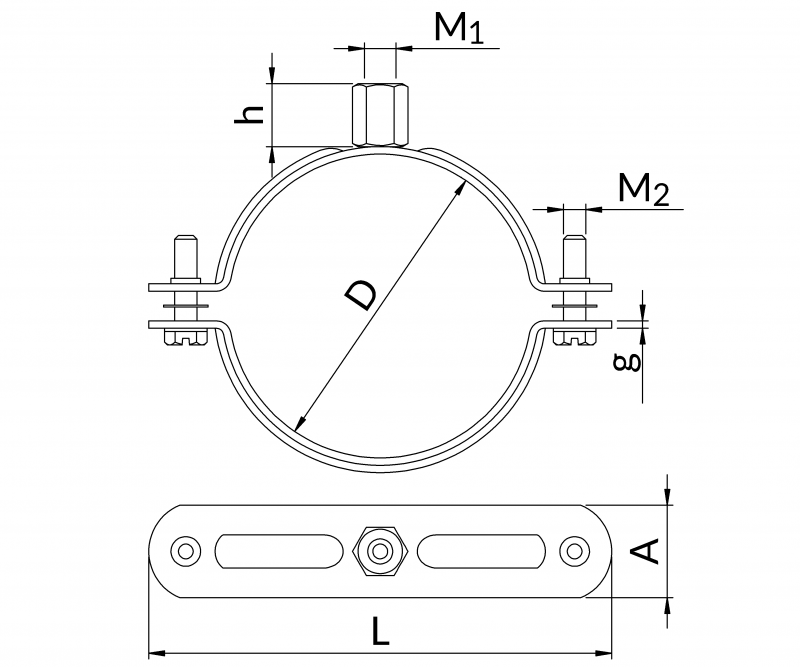

| Gama de diametre D [mm] | Marimea M 1 | Înălțimea conexiunii h [mm] | Versiune | Dimensiunile clemei L [mm]A xg [mm] | Șuruburi de conectare M 2 | Sarcina admisibila [kN] | Greutate [kg] | Cantitate [buc/pachet] | Marca pentru comandă | Număr de catalog |
|---|---|---|---|---|---|---|---|---|---|---|
| 15-17 | M8/M10 | 17 | D | 58-20x1,25 | M6 | 0,80 | 0,040 | 100 | UPZD-3/8'' | 80120101600 |
| 18-22 | M8/M10 | 17 | D | 62-20x1,25 | M6 | 0,80 | 0,042 | 100 | UPZD-1/2'' | 80120101800 |
| 23-27 | M8/M10 | 17 | D | 66-20x1,25 | M6 | 0,80 | 0,046 | 100 | UPZD-3/4'' | 80120102600 |
| 28-32 | M8/M10 | 17 | D | 70-20x1,25 | M6 | 0,80 | 0,048 | 100 | UPZD-25 | 80120103000 |
| 33-37 | M8/M10 | 17 | D | 76-20x1,25 | M6 | 0,80 | 0,052 | 100 | UPZD-1" | 80120103500 |
| 39-44 | M8/M10 | 17 | D | 83-20x1,25 | M6 | 0,80 | 0,056 | 50 | UPZD-11/4'' | 80120103900 |
| 45-49 | M8/M10 | 17 | D | 88-20x1,25 | M6 | 0,80 | 0,059 | 50 | UPZD-11/2'' | 80120104500 |
| 50-54 | M8/M10 | 17 | D | 93-20x1,25 | M6 | 0,80 | 0,059 | 50 | UPZD-54 | 80120105000 |
| 56-59 | M8/M10 | 17 | D | 103-20x1,25 | M6 | 0,80 | 0,066 | 50 | UPZD-58 | 80120105800 |
| 60-65 | M8/M10 | 17 | D | 105-20x1,25 | M6 | 0,80 | 0,068 | 50 | UPZD-2'' | 80120106400 |
| 66-71 | M8/M10 | 17 | D | 116-20x1,5 | M6 | 0,80 | 0,088 | 50 | UPZD-70 | 80120107000 |
| 72-78 | M8/M10 | 17 | D | 118-20x1,5 | M6 | 1,40 | 0,089 | 25 | UPZD-21/2'' | 80120107600 |
| 79-84 | M8/M10 | 17 | D | 125-20x1,8 | M6 | 1,40 | 0,106 | 25 | UPZD-80 | 80120108400 |
| 85-91 | M8/M10 | 17 | D | 132-20x1,8 | M6 | 1,40 | 0,113 | 25 | UPZD-3'' | 80120109000 |
| 92-98 | M8/M10 | 17 | D | 139-25x2,0 | M6 | 1,40 | 0,153 | 25 | UPZD-95 | 80120109600 |
| 99-105 | M8/M10 | 17 | D | 146-25x2,0 | M6 | 1,40 | 0,166 | 25 | UPZD-100 | 80120109900 |
| 106-113 | M8/M10 | 17 | D | 154-25x2,0 | M6 | 1,40 | 0,174 | 25 | UPZD-4'' | 80120111200 |
| 114-122 | M8/M10 | 17 | D | 162-25x2,0 | M6 | 1,80 | 0,183 | 25 | UPZD-114 | 80120112000 |
| 123-131 | M8/M10 | 17 | D | 171-25x2,0 | M6 | 1,80 | 0,197 | 25 | UPZD-125 | 80120112800 |
| 132-140 | M8/M10 | 17 | D | 180-25x2,0 | M6 | 1,80 | 0,206 | 25 | UPZD-5'' | 80120113800 |
| 141-148 | M8/M10 | 17 | D | 191-25x2,5 | M6 | 2,10 | 0,255 | 20 | UPZD-145 | 80120114400 |
| 149-157 | M8/M10 | 17 | D | 200-25x2,5 | M6 | 2,10 | 0,280 | 10 | UPZD-150 | 80120115600 |
| 158-167 | M8/M10 | 17 | D | 209-25x2,5 | M6 | 2,10 | 0,284 | 10 | UPZD-160 | 80120116600 |
| 168-177 | M8/M10 | 17 | D | 218-25x2,5 | M6 | 2,10 | 0,302 | 10 | UPZD-6" | 80120117600 |
