COLIERE TIP EXPERT UPG
Protecție anti-coroziune: zinc galvanizat
Suruburi de conectare: cu adâncitură cruce (între UPG-3/8" şi UPG-5") sau cu cap hexagonal (între UPG-139 şi UPG-500)
Insert de amortizare: material: elastomer EPDM; rezistenţă termică: între -40°C şi +120°
Suruburi de conectare: cu adâncitură cruce (între UPG-3/8" şi UPG-5") sau cu cap hexagonal (între UPG-139 şi UPG-500)
Insert de amortizare: material: elastomer EPDM; rezistenţă termică: între -40°C şi +120°

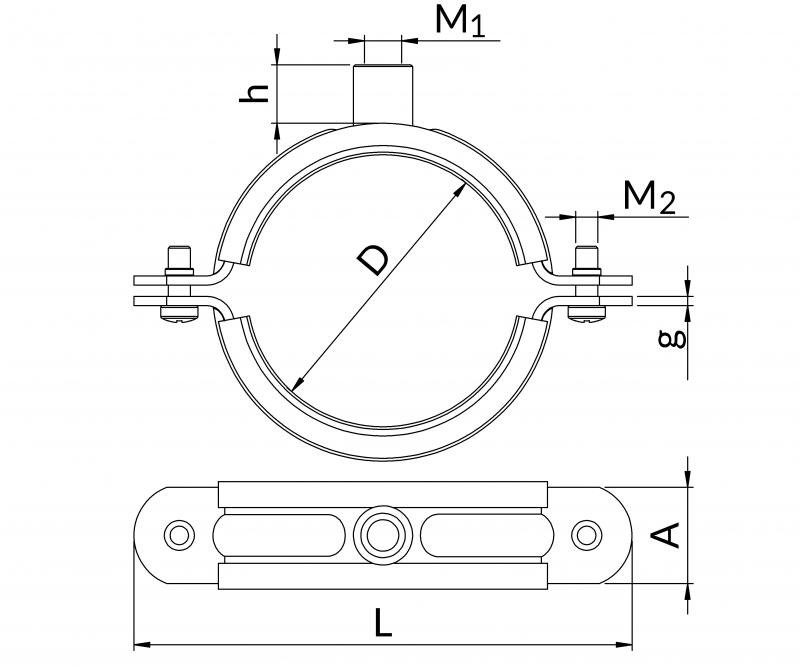

| Gama de diametre D [mm] | Marimea M 1 | Înălțimea conexiunii h [mm] | Versiune | Dimensiunile clemei L [mm]A xg [mm] | Șuruburi de conectare M 2 | Sarcina admisibila [kN] | Greutate [kg] | Cantitate [buc/pachet] | Marca pentru comandă | Număr de catalog |
|---|---|---|---|---|---|---|---|---|---|---|
| 16-20 | M8 | 5,3 | A | 63-20x2,0 | M6 | 2,00 | 0,06 | 100 | UPG-3/8" | 80130201700 |
| 80130201700 | M8 | 5,3 | A | 70-20x2,0 | M6 | 2,00 | 0,06 | 100 | UPG-1/2" | 80130202100 |
| 26-30 | M8 | 5,3 | A | 75-20x2,0 | M6 | 2,00 | 0,07 | 100 | UPG-3/4" | 80130202600 |
| 34-39 | M8 | 5,3 | A | 90-24x2,0 | M6 | 2,00 | 0,10 | 50 | UPG-1" | 80130203300 |
| 41-46 | M8 | 5,3 | A | 100-24x2,0 | M6 | 2,00 | 0,11 | 50 | UPG-11/4" | 80130204200 |
| 48-53 | M8 | 5,3 | A | 101-24x2,0 | M6 | 2,00 | 0,12 | 50 | UPG-11/2" | 80130204800 |
| 52-57 | M8 | 5,3 | A | 110-24x2,0 | M6 | 2,00 | 0,13 | 50 | UPG-54 | 80130205400 |
| 59-64 | M8 | 5,3 | A | 115-24x2,0 | M6 | 2,00 | 0,13 | 50 | UPG-2" | 80130206000 |
| 74-79 | M10/M12 | 17,5 | B | 136-26x2,5 | M6 | 2,50 | 0,22 | 25 | UPG-21/2" | 80130207600 |
| 78-84 | M10/M12 | 17,5 | B | 149-26x2,5 | M6 | 2,50 | 0,25 | 25 | UPG-80 | 80130208000 |
| 85-92 | M10/M12 | 17,5 | B | 145-26x2,5 | M6 | 2,50 | 0,26 | 25 | UPG-3" | 80130208900 |
| 102-108 | M10/M12 | 17,5 | B | 170-26x2,5 | M6 | 2,50 | 0,28 | 25 | UPG-100 | 80130210000 |
| 107-113 | M10/M12 | 17,5 | B | 170-26x2,5 | M6 | 2,50 | 0,29 | 25 | UPG-4" | 80130211000 |
| 112-118 | M10/M12 | 17,5 | B | 176-26x2,5 | M6 | 2,50 | 0,31 | 25 | UPG-114 | 80130211400 |
| 124-131 | M10/M12 | 17,5 | B | 194-26x2,5 | M6 | 2,50 | 0,34 | 20 | UPG-125 | 80130212500 |
| 130-138 | M10/M12 | 17,5 | B | 194-26x2,5 | M6 | 2,50 | 0,35 | 20 | UPG-5" | 80130213300 |
| 141-148 | M10/M12 | 25,0 | C | 220-35x3,0 | M8 | 3,90 | 0,61 | 10 | UPG-139 | 80130213900 |
| 158-166 | M10/M12 | 25,0 | C | 235-35x3,0 | M8 | 3,90 | 0,63 | 10 | UPG-6" | 80130216000 |
| 164-172 | M10/M12 | 25,0 | C | 236-35x3,0 | M8 | 3,90 | 0,65 | 10 | UPG-6" | 80130216000 |
| 164-172 | M10/M12 | 25,0 | C | 236-35x3,0 | M8 | 3,90 | 0,65 | 10 | UPG-168 | 80130216800 |
| 175-188 | M10/M12 | 29,0 | C | 252-35x3,0 | M8 | 3,90 | 0,70 | 10 | UPG-188 | 80130218800 |
| 200-208 | M10/M12 | 25,0 | C | 286-35x3,0 | M8 | 3,90 | 0,82 | 10 | UPG-200 | 80130220000 |
| 206-214 | M12/M16 | 25,0 | C | 300-35x3,0 | M8 | 3,90 | 0,85 | 10 | UPG-210 | 80130221000 |
| 214-222 | M12/M16 | 25,0 | C | 305-35x3,0 | M8 | 3,90 | 0,87 | 10 | UPG-8" | 80130221900 |
| 244-252 | M12/M16 | 25,0 | C | 334-35x3,0 | M8 | 3,90 | 0,94 | 10 | UPG-250 | 80130225000 |
| 264-273 | M12/M16 | 26,0 | C | 376-35x4,0 | M12 | 4,50 | 1,42 | 5 | UPG-273 | 80130227300 |
| 307-316 | M12/M16 | 26,0 | C | 420-35x4,0 | M12 | 4,50 | 1,58 | 5 | UPG-315 | 80130231500 |
| 317-326 | M12/M16 | 26,0 | C | 428-35x4,0 | M12 | 4,50 | 1,62 | 5 | UPG-324 | 80130232400 |
| 395-404 | M12/M16 | 26,0 | C | 467-35x4,0 | M10 | 4,50 | 1,84 | 5 | UPG-400 | 80130240000 |
| 495-504 | M12/M16 | 26,0 | C | 569-35x4,0 | M10 | 4,50 | 2,22 | 5 | UPG-500 | 80130250000 |
