ŞAIBE ROTUNDE PD
Protecție anticorozivă: zinc galvanic.

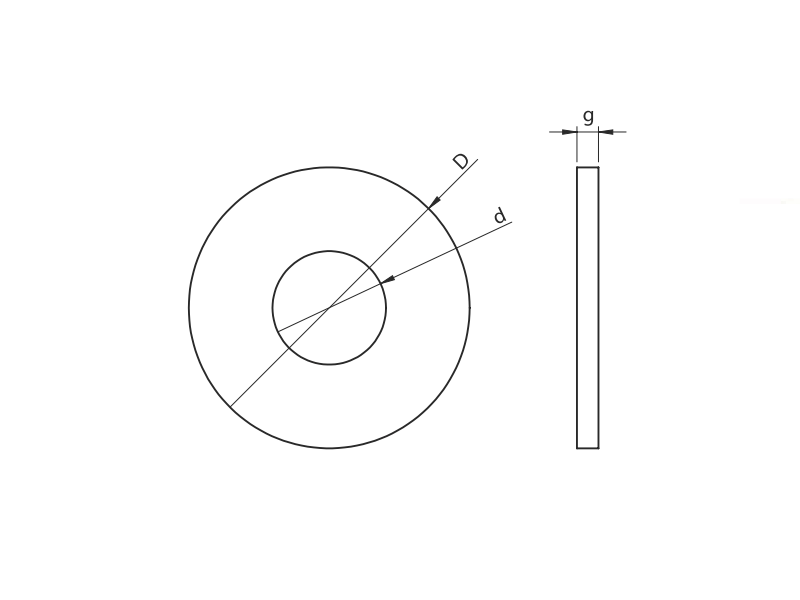

| Diametru D [mm] | Diametru d [mm] | Grosime g [mm] | Cantitate [buc./amb.] | Cantitate [buc./kg] | Marcaj pentru comandă | Număr catalog |
|---|---|---|---|---|---|---|
| 12,5 | 6,4 | 1,5 | 50 | 978 | PD-6-M | 81480000600 |
| 17,0 | 8,4 | 1,5 | 50 | 469 | PD-8-M | 81480000800 |
| 21,0 | 10,5 | 1,5 | 50 | 335 | PD-10-M | 81480001000 |
| 26,0 | 6,4 | 2,0 | 50 | 134 | PD-6 | 81480100600 |
| 26,0 | 8,4 | 2,0 | 50 | 169 | PD-8 | 81480100800 |
| 26,0 | 10,5 | 2,0 | 50 | 142 | PD-10 | 81480101000 |
| 26,0 | 13,0 | 2,0 | 50 | 167 | PD-12 | 81480101200 |
| 30,0 | 17,0 | 3,0 | 50 | 95 | PD-16 | 81480101600 |
| 36,0 | 8,5 | 3,0 | 50 | 45 | PD-8-P | 81480200800 |
| 36,0 | 10,5 | 3,0 | 50 | 47 | PD-10-P | 81480201000 |
| 36,0 | 12,5 | 3,0 | 50 | 48 | PD-12-P | 81480201200 |
| 50,0 | 17,0 | 3,0 | 50 | 26 | PD-16-P | 81480201600 |
Produse compatibile
Protecție anticorozivă: zinc galvanic. Documentatie tehnica: KDWU 05_2020 z dn. 31.12.2020 ITB-KOT-2020_1562 wyd. 1 Tije din clasa 4.8
